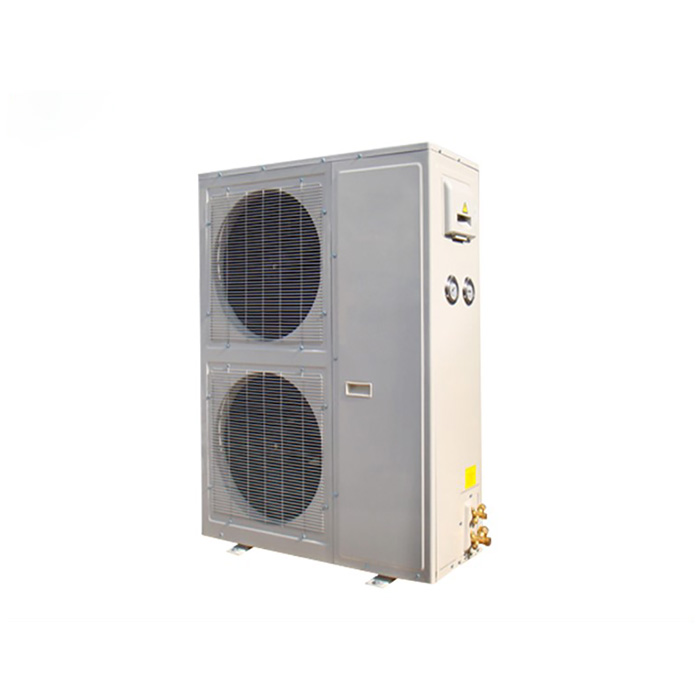

BCQ-E Series Box Type Hermetic Condensing Unit

BCQ-E Series Box Type Hermetic Condensing Unit

Description:

BCQ-E series with hermetic compressor and control box, The applicable temperature ranges are: -5°C--15°C, -5°C--5°C and -15°C---25°C, it widely used in hotels, restaurants, medicines, agricultural, chemicals industries all other place when cold storage is needed.

Features:
1. BCQ-E series box type hermetic condensing unit was added electric components one basis of old XJQ series, main is control board, cold room temp control board and operation board. Cold room temp control board and operation board are optional.
2. Main control board can start/stop compressor by system low voltage, be suitable for super market, milk container, water chiller ad etc. If all optional included ,system can control compressor by temp, with function of temp, and defrosting adjustment. The complete set of control system can be used for cold room directly, no extra controller required. Main control board can start/stop compressor by system low voltage, be suitable for super market, milk container, water chiller etc. If all optional included ,system can control compressor by temp, with function of temp, and defrosting adjustment. The complete set of control system can be used for cold room directly, no extra controller required.
3. Phase reversion protection, phase lack protection, overload current protection, too constant start of compressor protection, discharge temperature protection, system low/high pressure protection and etc.
4. With fan speed regulator, it can adjust condensing fan motor speed according to condensing temperature.
5. With operation data display function, it will send out alarm remind user if product fault effects.
6. With operation panel, can show temp, setting ,defrosting control, operation system data checking and cold room temp, alarm functions. Operation panel can be installed apart from condensing units for remote control.
