Bitzer air cooled cold room condensing unit

1. Product description

This series products feature box type structure with semi-hermetic compressor,  that is compact and pleasant looking,applicable to cold display cases, cold storage rooms, ice producers etc.  The applicable temperature ranges are: -5℃~+5℃ and -15℃~-20℃. They can be used in hotels, restaurants,  medicines, agricutureral, chemicals industries all other place where cold storage is needed.

2. Assembly unit
(1) Middle and high temperature AQ~03PMTB to AQ~20PMTB
Pressure controller

Liquid accumulator

Crankcase heater

Solenoid valve

Condenser
Bitzer Semi-hermetic screw compressor

High/low pressure gauge

Junction box Filter

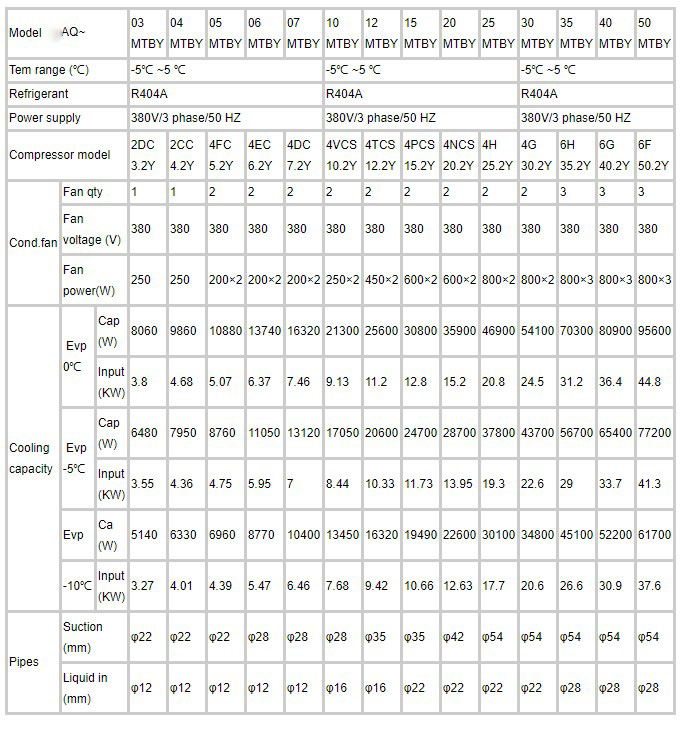

Product Spec sheet:

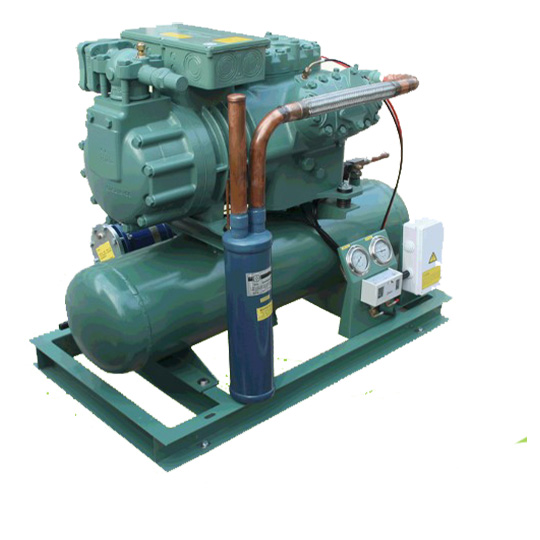

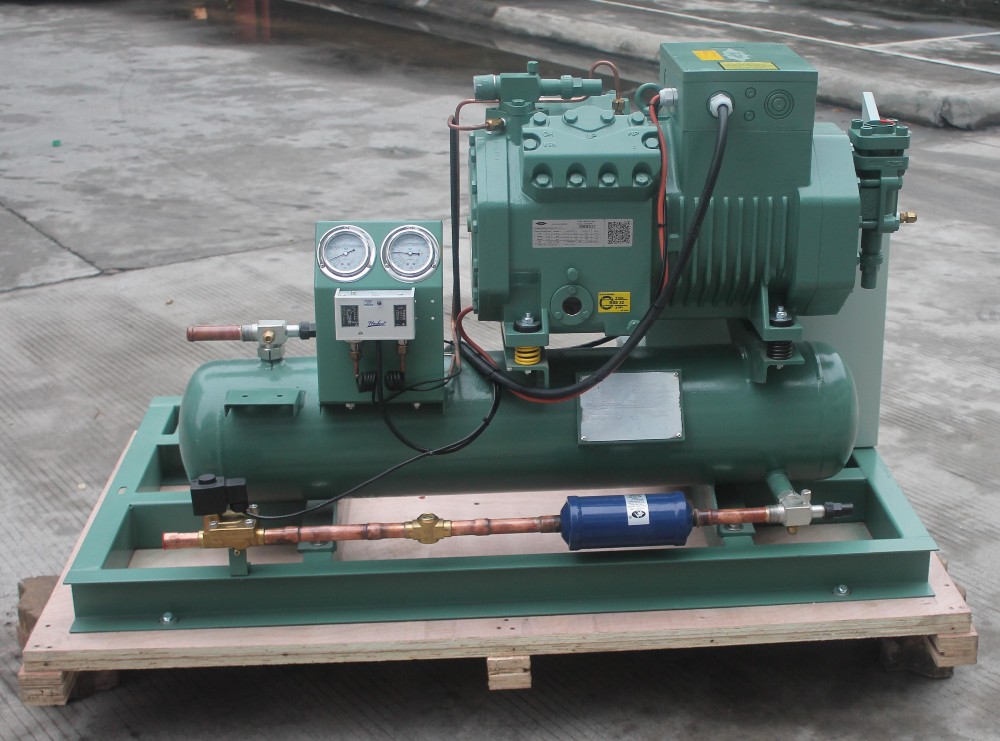

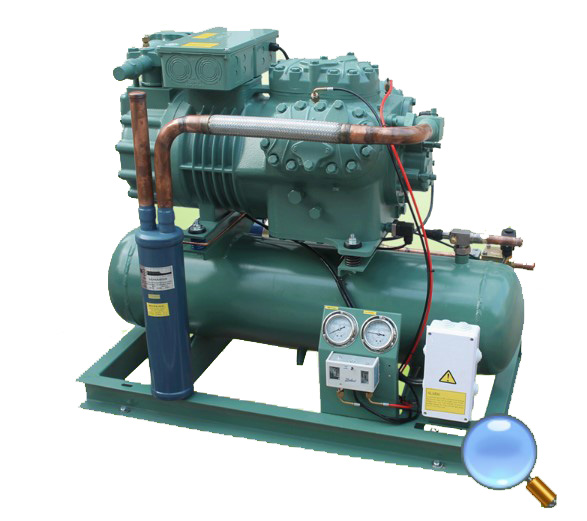

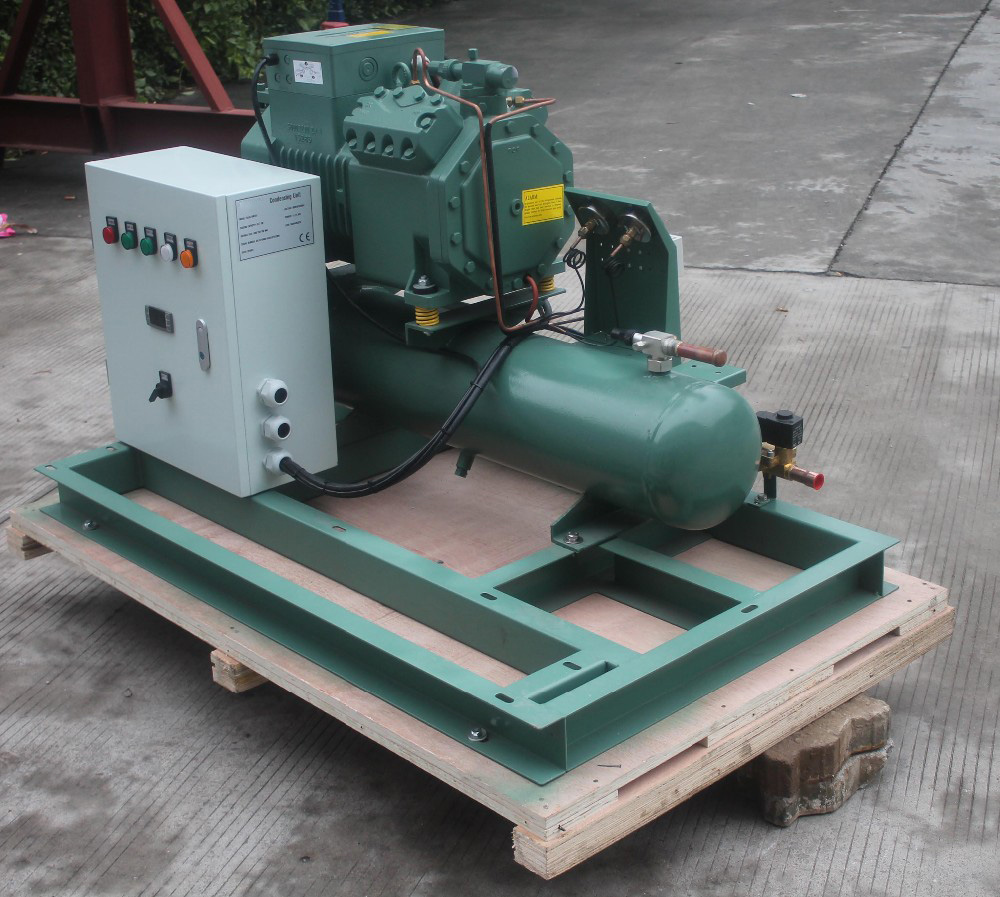

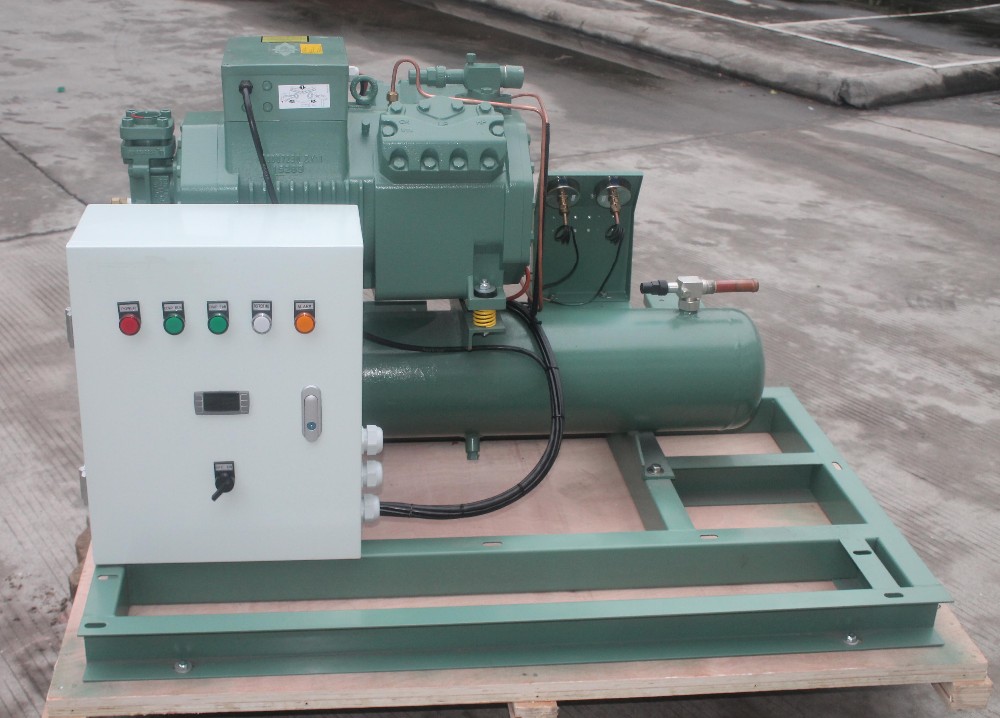

Product show:

Q: What information do you need to provide in order to get a quotation?

A: Generally, for condensing unit we need to know the Cooling Capacity, required evaporated temperature(cold room temperature), compressor brands etc in order to suggest the suitable models and for providing the quotation.

Q: Can I have a samples for testing before ordering products?

A: Yes, you can.

We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.

Q: What is the warranty of products?

A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
