Refrigeration Equipment Condensing Unit

Refrigeration equipment condensing unit

1. Product description

With Bitzer ECOLINE series semi-hermetic compressor.
With copper tube-Alu. Fin air cooled condenser or high efficient shell-tube water cooled condenser.
Air cooled condensing units with low noise and high efficient external rotor fan motor.
With high quality China made or imported components.
System with water-proof cable connection box for easy connection.
A complete product range with wide temp. range available, can be used for keeping fresh, cold storage, ice making and cold water etc."    .

2. Product Assembly unit
(1) Middle and high temperature AB~02MY to AB~02MY
Pressure controller
Liquid accumulator
Crankcase heater
Solenoid valve
Condenser
Bitzer Semi-hermetic screw compressor
High/low pressure gauge
Junction box Filter

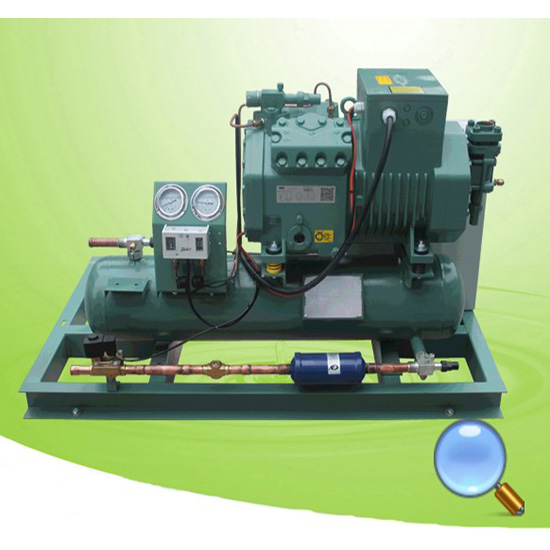

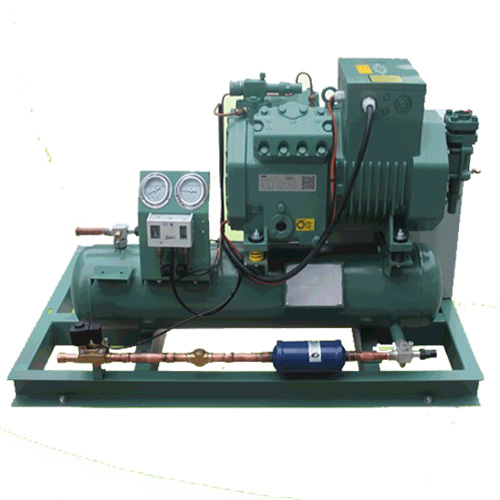

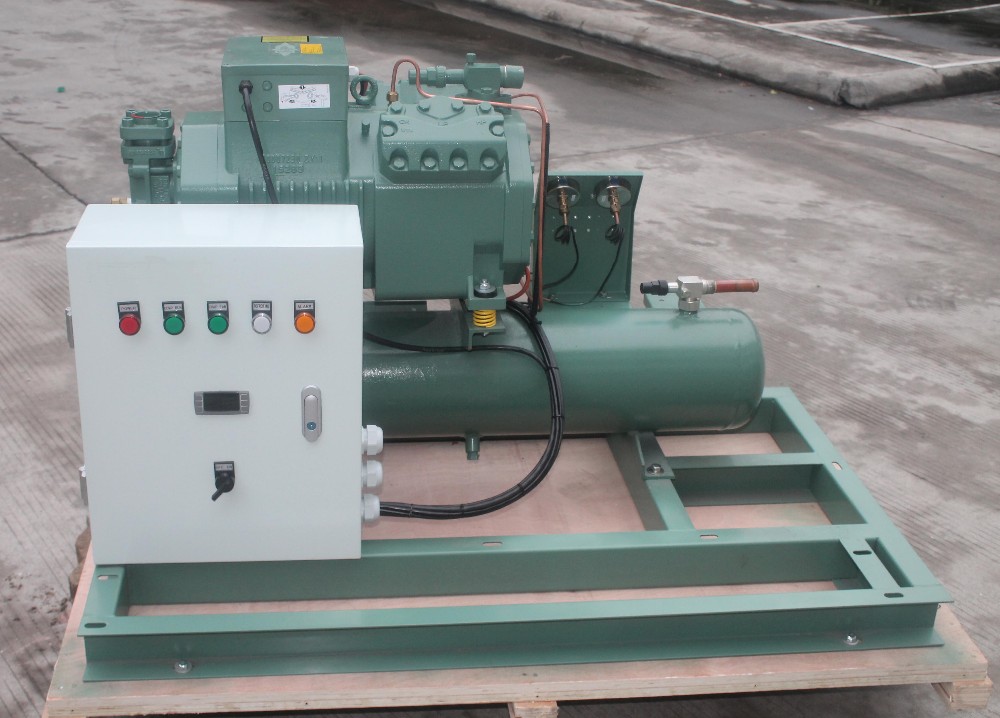

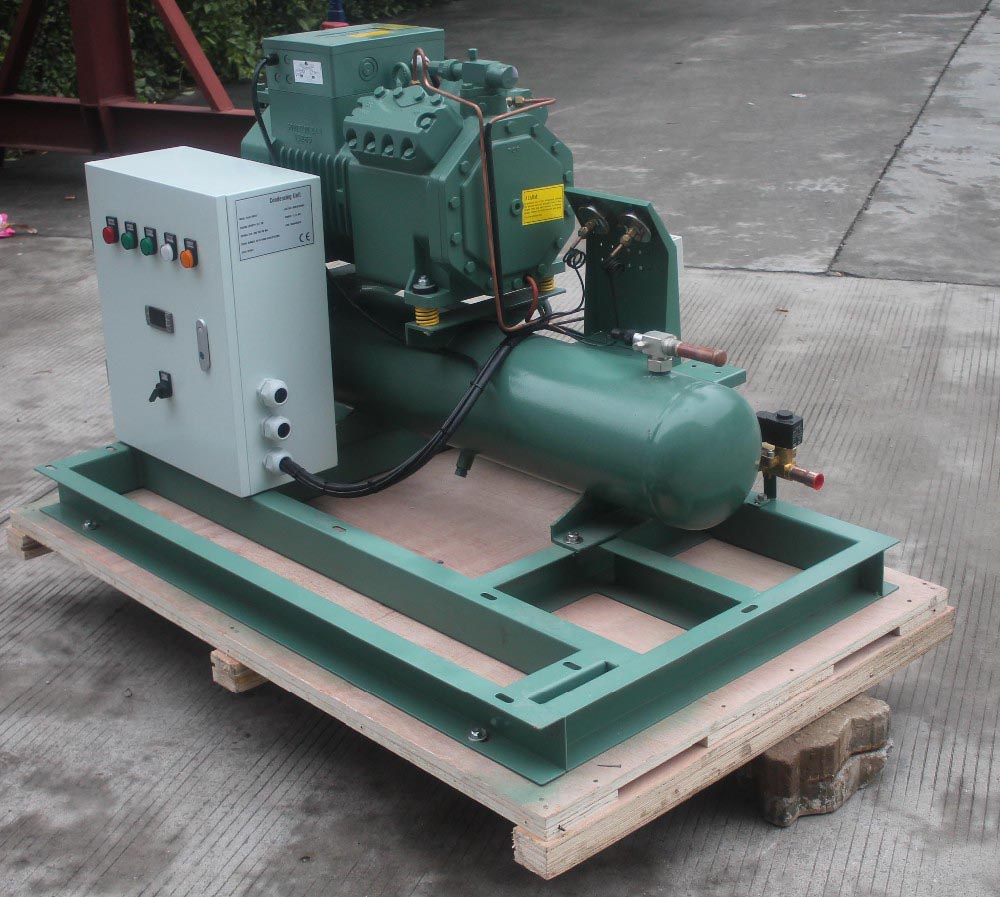

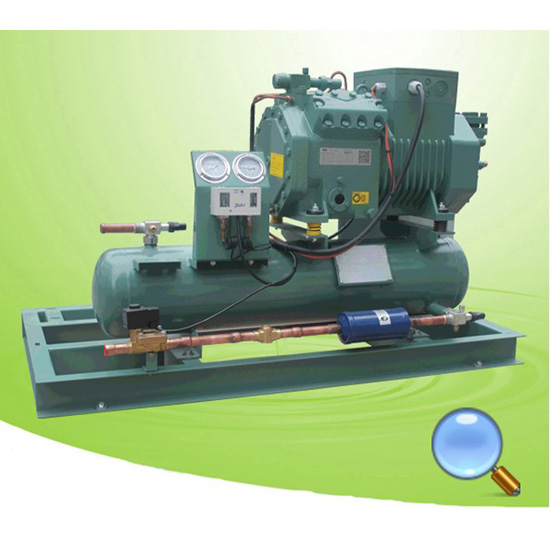

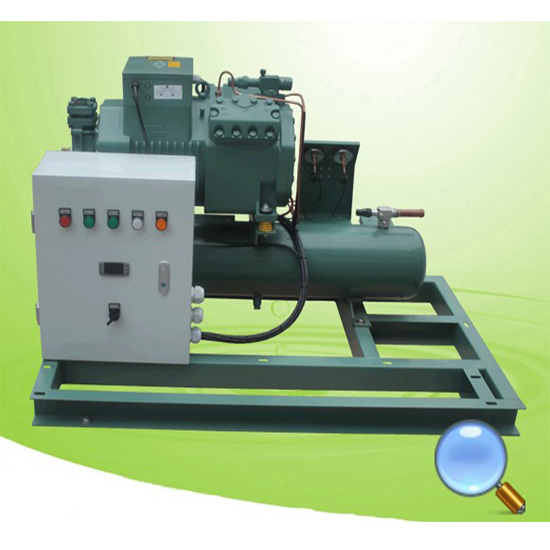

4. Product Pictures

5. FAQ

Q: What information do you need to provide in order to get a quotation?

A: Generally, for condensing unit we need to know the Cooling Capacity, required evaporated temperature(cold room temnperature), compressor brands etc in order to suggest the suitable models and for providing the quotation.

Q: Can I have a samples for testing before ordering products?

A: Yes, you can. We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.

Q: What is the warranty of products?

A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
