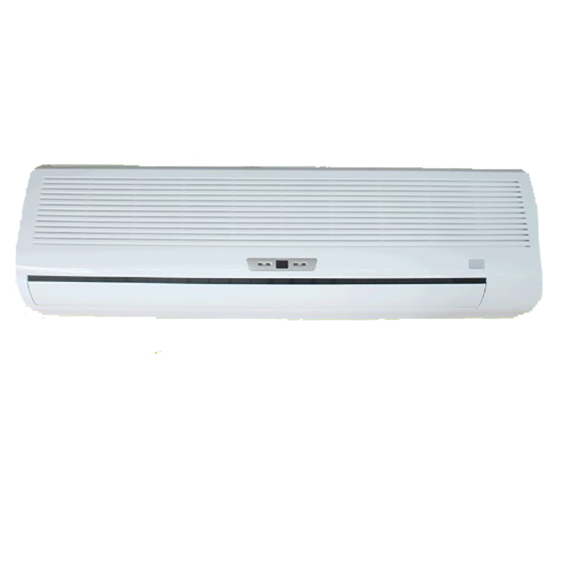

Wall mounted split water fan coil unit for room thermostat

Wall mounted split water fan coil unit for room thermostat

Key Features

Comfort Control

l Easy and intelligent operation. With intelligent timer, automatic temperature setting, 3 speed airflow, auto-swing function.

l Auto‐swing capability with 100°airflow pattern distributes comfortable airflow.

l Easy discharged air filters for cleaning.

l Remote controller provided as standard.

l Optional wired controller.

l Condensate try and pipe.



Stable Quality

l Quality ABS cabinet. Efficiently avoid yellowing, keep the same color after years.

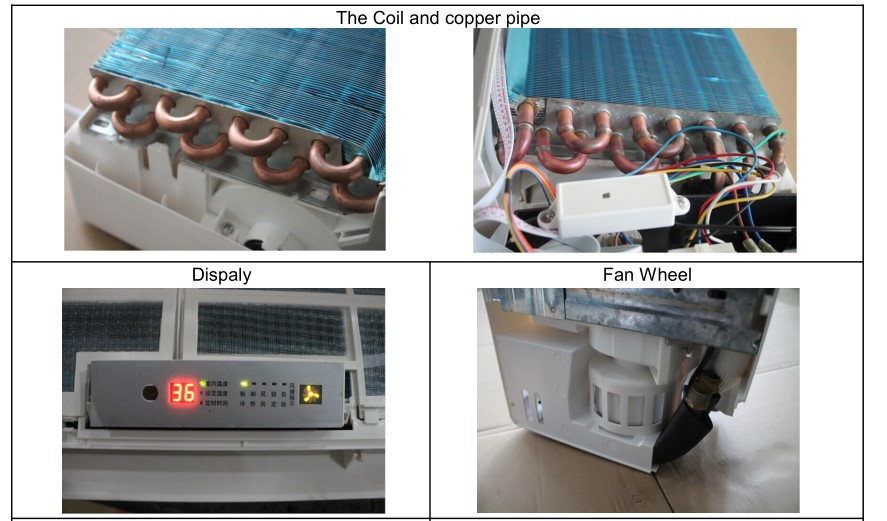

l Coil. 0.4mm thickness seamless copper tube bonded to the aluminum fin packs > common use 0.35mm seamless copper tube in this industry.

l Branded fan motor. Equipped with oil-impregnated bearing, automatic lubricating, it has the advantage of high efficiency, noiseless, long lifetime.

l Quiet operation as low as 37 dB (A).

l Certification: CE.



Others

l Color: White.

l Plug is customized upon request.

l Two-way valve, three-way-valve are as optional.

l OEM is available.

♦A fan coil unit (FCU) is a simple device consisting of a heating or cooling coil and fan. It is part of an
HVAC system found in residential, commercial, and industrial buildings.

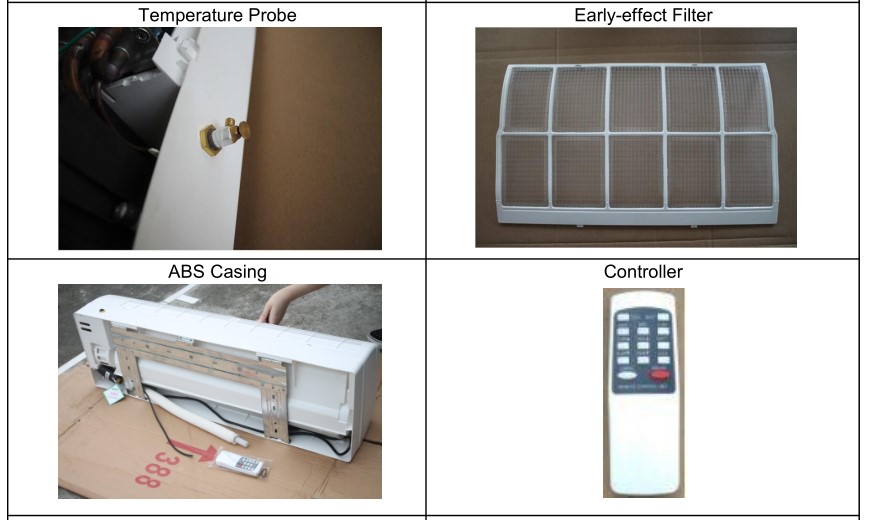

♦Our split fan coil unit consist of ABS casing, effective heat exchanger with copper tube, hydrophilic
aluminum, filter, vent valve, circuit board, remote controller etc.
♦The standard split fan coil unit is remote control, if you need to wire control, there will be no remote
controller, you needs to compact a thermostat. And for wire control, the shutter of fan coil unit can't be
controled to swing up and down, you need to move and change the shutter by hand, which means
manual control.

Site Reference Images
