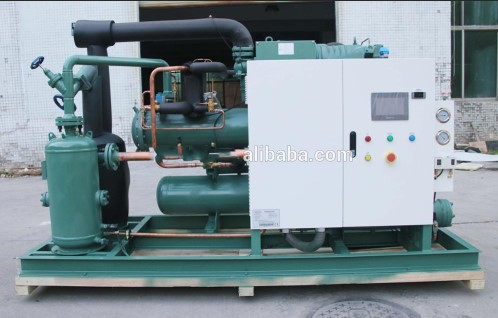

Screw type water cooled condensing unit (Bitzer Compressor)

Screw Type Water cooled Condensing Unit (Bitzer Compressor)

Product Description

1. Screw type condensing unit (with Bitzer compressors)

This series products are applicable to the large size -25℃~-40℃ low temperature refrigeration system, as the large size low temperature cold rooms, ice making, and blast freezing etc., with the features of.
1) German Bitzer semi-hermetic, low temperature screw compressor, with the features of high efficiency, long service life, tiny vibration and low noise.
2) All this series products have a complete set of world famous components, protection devices for compressor wrong direction, overheat, overload, over discharging temp, low oil level, over high/low pressure of oil flow etc.
3) The product is matched with economizer, which can effectively increase the capacity for low temp operation.

2. Main components
Low temp. screw machine     Sight glasses      Pressure protector
Economizer assembly       Receiver        Pressure gauge
Oil circuit assembly      Oil cooler       Suction Filter
Unit control box(PLC+touch panel)

Oil separator    Liquid pipe Filter
Condenser(only for water-cooling unit)
