Horizontal Duct ceiling concealed Fan Coil Unit

Product name: Horizontal Duct ceiling concealed Fan Coil Unit

Category: Horizontal fan coil unit

Product introduction:

Air Conditioner Terminal Horizontal Duct ceiling concealed Fan Coil Unit

Product Description

Lightweight, compact, solid, and with ultra-thin design
Three-row pipes with hyperbolic shutter type aluminum fin heat exchange, strengthens the air by impeller fan of large input air, so that the unit maximizes heat transfer efficiently
Particularly, the unit adopts large impeller slow-speed of revolution fan and low noise motor
With high, medium, and low wind speed in third gear, water system adopts room temperature control devices to adjust flexibly
When nobody is in the room, the fan stop automatically, economic and energy-saving
Each model has four kinds of overboard static pressures which are 0PA, 80PA, 60PA, and 80PA (optional)
Unit can achieve the overboard static pressure by only updating the motor connector plug
Controlled easily by subarea in accordance with the application and room design air-conditioning system into several zone system.

Product Series

1. Horizontal concealed FCU
2. Horizontal exposed FCU
3. Cassette FCU
4. Split FCU
5. Vertical exposed FCU
6. Vertical concealed FCU
7. Ceiling, floor FCU

Product Parameter

Horizontal Concealed Fan Coil Unit
Model LC~			34HC	51HC	68HC	85HC	102HC	136HC	170HC	204HC	238HC
Air flow	High speed		340	510	680	850	1020	1360	1700	2040	2380
(m 3 /h)	Medium speed		255	383	510	638	765	1020	1275	1530	1785
	Low speed		170	255	340	425	510	680	850	1020	1190
Cooling capacity	High	W	2247	3146	4146	5056	5955	7758	9657	11601	13965
	High	BTU	7669	10737	14150	17256	20324	26478	32959	39594	47663
	Medium	W	1620	2440	3290	4120	4850	6550	8190	9730	11580
	Medium	BTU	5529	8328	11229	14062	16553	22355	27952	33208	39523
	Low	W	1310	2010	2650	3320	3900	5300	6610	7860	9350
	Low	BTU	4471	6860	9044	11331	13311	18089	22560	26826	31912
Heating capacity	High	W	3251	4697	6189	7747	9491	11997	14732	18162	22137
	High	BTU	11096	16031	21123	26441	32393	40946	50280	61987	75554
	Medium	W	2350	3520	4530	6040	6850	9260	11740	14140	16360
	Medium	BTU	8021	12014	15461	20615	23379	31604	40069	48260	55837
	Low	W	1620	2470	3130	4170	4740	6500	8180	9710	11290
	Low	BTU	5529	8430	10683	14232	16178	22185	27918	33140	38533
Surplus pressure	Normal		0 or 12
of outlet (Pa)	High static pressure		30 or 50
Cooling water temperature			7-12°C
Hot water temperature			40-60°C
Power supply			AC220V/50Hz
Heat Exchanger	Type		2.2mm copper pipes covered into aluminum fins, fin pitch 2.2mm
	Water supply kg/h		324	482	655	814	936	1278	1602	1915	2178
	Water resistance kPa		30	30	30	30	40	40	40	40	50
	Working pressure		1.6MPa
Low static pressure FCU		Input power w	37	52	62	76	96	134	152	189	228
Low static pressure FCU		Motor power w	10	16	20	25	30	20×2	25×2	30×2	40×2
High static		Input power w	44	59	72	87	108	156	174	212	253
pressure FCU	Static pressrue	Input power w	44	59	72	87	108	156	174	212	253
	30Pa	Motor power w	12	20	25	30	40	25×2	30×2	40×2	50×2
	Static pressure	Input power w	49	66	84	100	118	174	210	250	300
	50Pa	Motor power w	16	25	30	40	50	30×2	40×2	50×2	60×2
Fan motor quantity			1	2	2	2	2	3	4	4	4
	Low static pressure		≤37	≤39	≤41	≤43	≤45	≤46	≤48	≤50	≤52
Noise	High static pressure 30Pa		≤40	≤42	≤44	≤46	≤47	≤48	≤50	≤52	≤54
dB(A)	High static pressure 50Pa		≤42	≤44	≤46	≤47	≤49	≤50	≤52	≤54	≤56
Pipe	Inlet/outlet water pipe		3/4 "internal thread
Pipe	Condensation water pipe		3/4" external thread
		L mm	780	880	980	1080	1180	1480	1680	1780	1880
Dimension		W mm	500	500	500	500	500	500	500	500	500
		H mm	260	260	260	260	260	260	260	260	260
20GP container loading quantity			325	290	260	236	216	172	152	143	135
40GP container loading quantity			666	591	531	482	441	351	309	292	277
Main materials
Aluminium thickness:0.014mm, Copper tube thickless:0.35mm, Galvanized sheet: 1mm, Packing: Carton

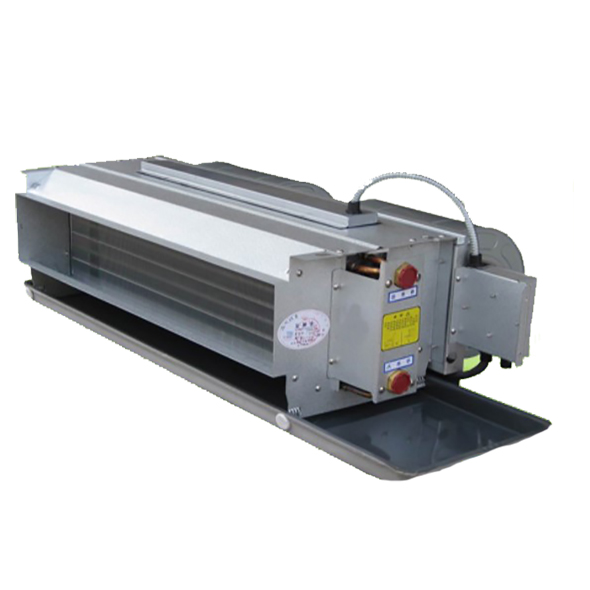

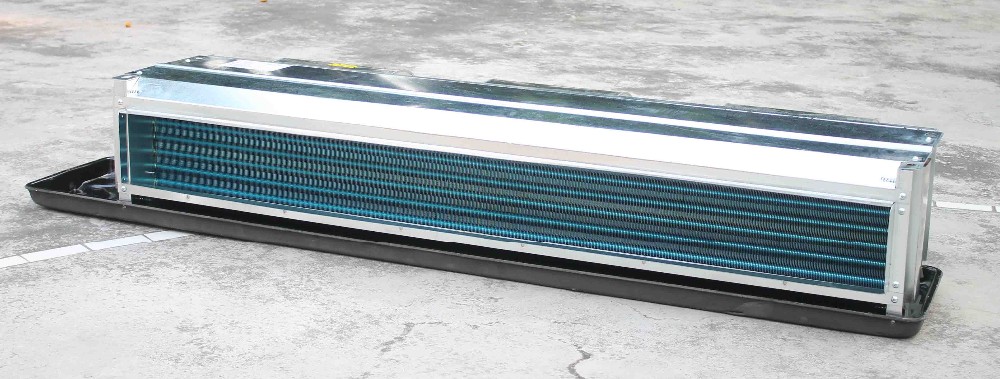

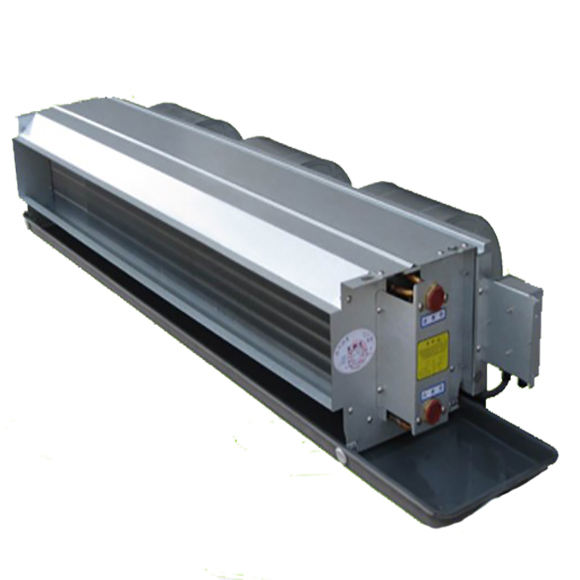

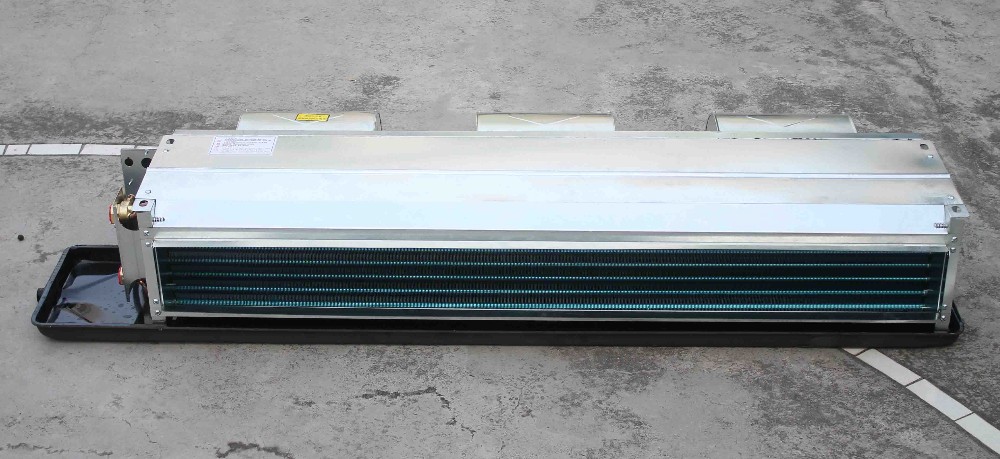

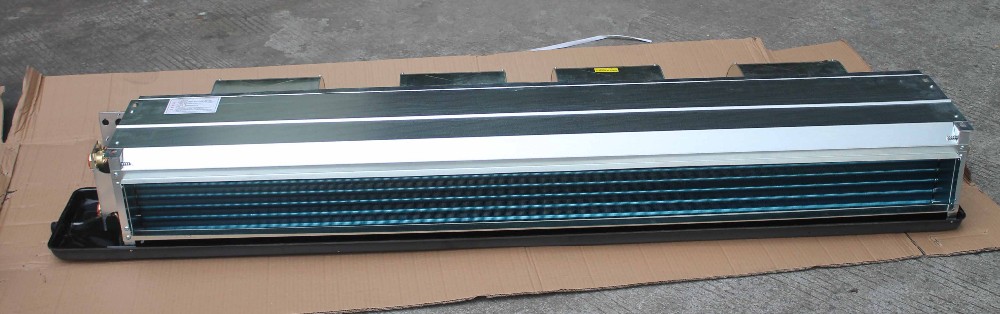

Product Show:

Delivery & Payment
1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.

FAQ

Q: What information do you need to provide in order to get a quotation?
A: Generally, for fan coil unit we need to know the Cooling Capacity, Air Flow, Power Supply and Order Quantity etc in order to suggest the suitable fan coil unit models and for providing the quotation.
For horizontal fan coil unit, besides the information mentioned above, pls also tell us:
1) With air return box and air filter? ( YES or NO )
2) Air return from BACK side or DOWN side?
3) With LCD thermostat? ( YES or NO )
4) With two-way or three-way valve? ( YES or NO )
5) Water pipe connection LEFT connection or RIGHT connection?
6) Standard horizontal concealed fan coilo unit is 3 rows coils with one inlet & one outlet.
We could also make it 4 rows coils with two inlets & two outlets.
7) If you required electric heating, pls tell us how many heating capacity you need.
Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.
Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
