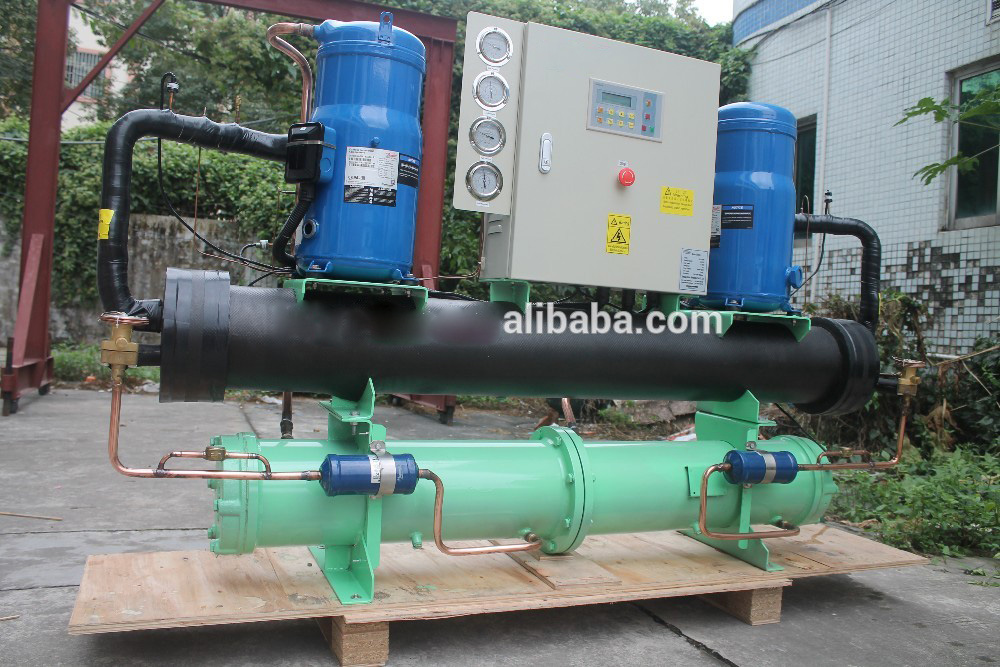

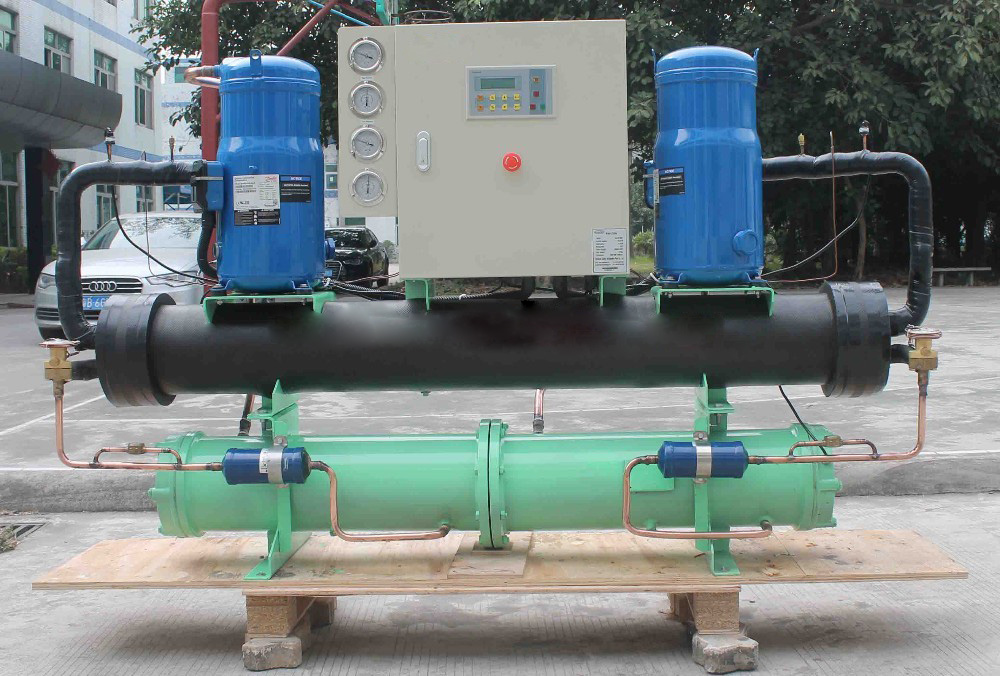

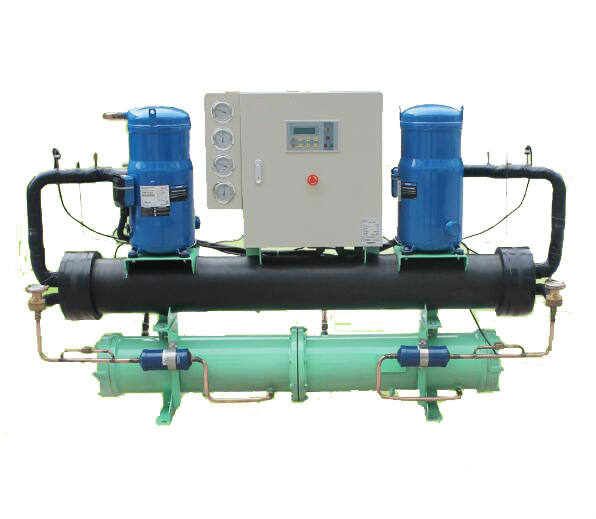

CE certified 20HP - 45HP scroll type water cooled chiller

Product name: CE certified 20HP - 45HP scroll type water cooled chiller

Category: Products

Product introduction:

CE certified 20HP - 45HP scroll type water cooled chiller

Industrial cooling:

Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,laser carving,

vacuum coating, ultrasonic cleaning etc industries.Chiller that uses high effective a easy cleaning stainless

steel heat exchange, exerts its unique advantage against erosion and filth in electroplating, PCB, oxidization,

chemical Industry,etc weak acid and alkaline conditions.

Commercial cooling: Air conditioner system

Widely used in building air conditioning system, small and medium-sized office,

workshop, restaurants, villas and other air conditioning environment.

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

ADVANTAGES:

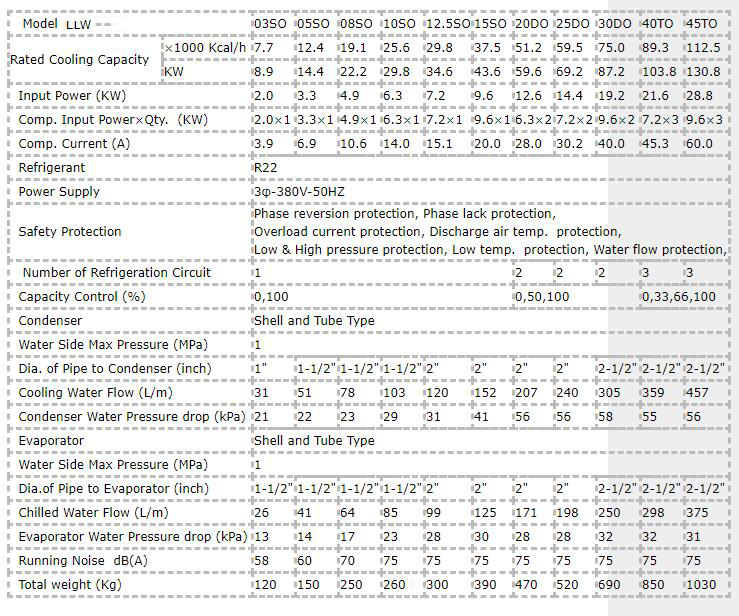

1. Rated Cooling Capacity Based on: Chilled water inlet/outlet temp. 12°C/7°C,

Cooling water inlet/outlet temp. 30°C/35°C,

2. Chilled Water Range: 5~20°C;

3. Cooling Water Range: 20~40°C;

4. Refrigerant: R22 / R407C / R410A / R134A is optional.

5. Designed with imported compressor(Copeland Brand) and multi-refrigeration circuits.

6. Compressors: 1~3 compressors design to save energy and power.

7. Open-type stainless steel water tank, easy and fast to clean and maintain.

8. Well-structured safety protection and trouble indication system.

9. Brand of Compressor: Standard unit is Copeland, can guarantee reliable running, high efficiency, low noise and power saving and long use life. You could choose other brands just like Danfoss, Bitzer, Dakin etc.

10. Electrostatic plastic sprayed outter casing, the outer panel is easy dismantlement to guarantee convenient usage and maintenance.

11. Microcomputer intelligent temperature controller, high precision digital display.
