Industrial box type water cooled water chiller

Industrial box type water cooled water chiller

Unit Summary: ◎ LA / W is one of the series of industrial chillers products.
◎ chiller using the original brand compressor and electric control processing with efficient, high quality shell and tube condenser and evaporator.
◎ compact chiller structure, adequate cooling capacity, high efficiency, easy to clean and maintain.
◎ Beverly licensing industrial chillers with more than 10 specifications.
◎ refrigeration chiller scope 8800kcal / h hour to 134100kcal / h hour (3HP-45HP), frozen water temperature range of 5 ℃ to 20 ℃.
◎ chiller unit configuration there is lack of reverse protection, motor overload protection, high and low voltage protection, low temperature protection and water protection
and other protective devices,The perfect combination of various components, can maximize the effectiveness of the use in real-world conditions.
◎ "Beverly card" uses a wide range of industrial chillers for plastic, electroplating, electronics, chemical, pharmaceutical, food processing and insurance industries.
◎ Our company can produce different sea water and power supply standard products.
※ unit selection
◎ LA / W series of industrial chillers are designed for industrial production processes cooling design, manufacture chillers.
◎ chiller All models are equipped with a cold water storage tank and cold water circulation pumps.
◎ chiller divided into three types:  1. Box-type water-cooled industrial chillers;   2. Open cooled industrial chillers;   3. Air-cooled industrial chillers. Water-cooled box-type design, with movable casters, slim shape, beautiful, free to change the location of installation and auxiliary equipment, suitable for supporting
small-scale production equipment.
Air-cooled design, providing the performance of the unit outside the box, without the need to install additional cooling water pump and towers, simple installation,
easy operation, suitable for small, flexible production equipment.
Water-cooled box-type design, with water tanks, can be placed in the workshop.20 above model unit is equipped with two compressors, and have multi-stage energy
regulation, can focus on the supply of cold water, for small and medium production sites.
Air-cooled design, without cooling with a water pump and water tower, the machine can be installed outdoors, saving space and production sites, to reduce noise
and energy consumption, centralized supply of cold water.
Water-cooled open design, can be installed in the engine room, with the excellent performance of water-cooled box unit.
Notes: Our water-cooled industrial chillers been certified by CE.

Features:



	Injection Industry



	chiller can accurately control the temperature of mold which can improve the quality and production rate.







	Electronic Component Industry



	chiller can stabilize the molecular structure of electronic component inside.



	This can improve the FTQ and product time.







	Machinery Industry



	chiller can cool down the oil for the machine and stabilize the oil temperature and pressure.



	It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency.







	Electroplating Industry



	The temperature of electroplate can be controlled by our chiller.



	It can improve the density and smooth of electroplate and production efficiency.







	Food & Drink Processing Industry



	The temperature of processed food and drink will be too high to be packaged.



	Golden chiller can cool it down through food grade stainless steel heat exchanger.

Advantages:



	1. Rated Cooling Capacity Based on: Chilled water inlet/outlet temp. 12°C/7°C,



	    Cooling water inlet/outlet temp. 30°C/35°C,



	2. Chilled Water Range: 5~20°C;



	3. Cooling Water Range: 20~40°C;



	4. Refrigerant: R22 / R407C / R410A / R134A is optional.



	5. Designed with imported compressor(Copeland Brand) and multi-refrigeration circuits.



	6. Compressors: 1~3 compressors design to save energy and power.



	7. Open-type stainless steel water tank, easy and fast to clean and maintain.



	8. Well-structured safety protection and trouble indication system.



	9. Brand of Compressor: Standard unit is Copeland, you could choose other brands just like Danfoss, Bitzer, Dakin etc.

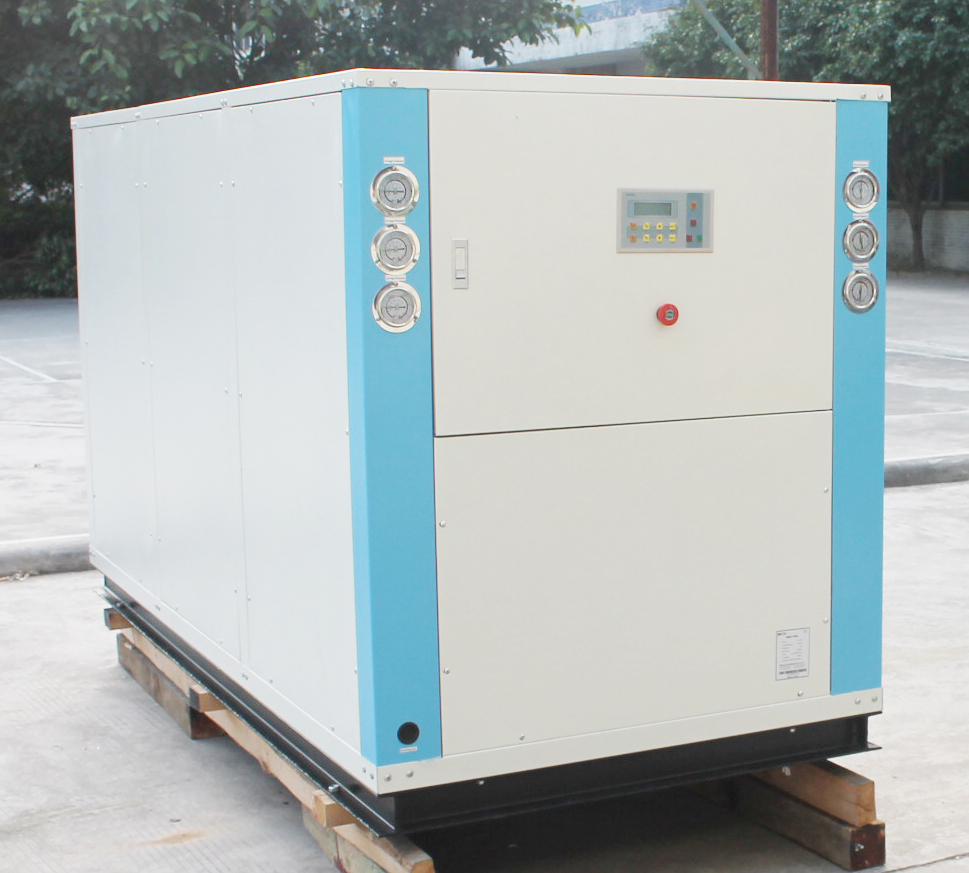

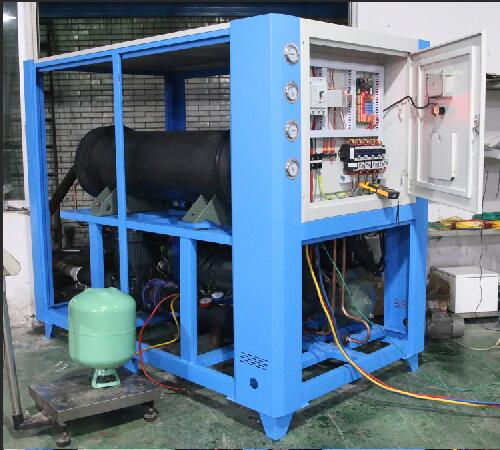

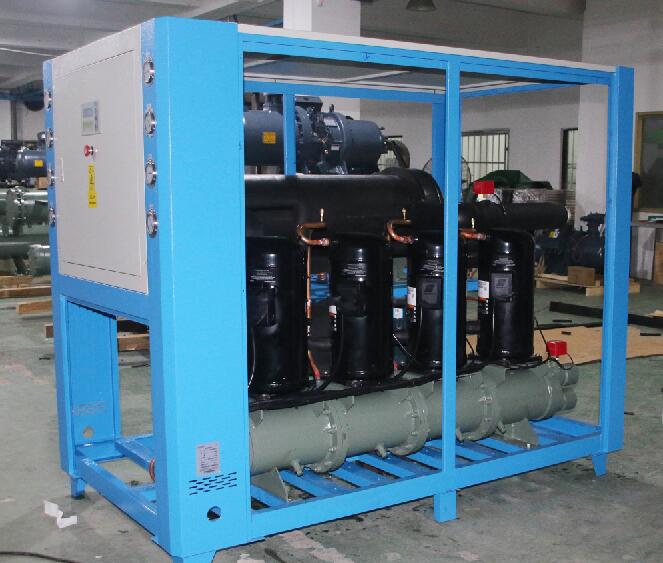

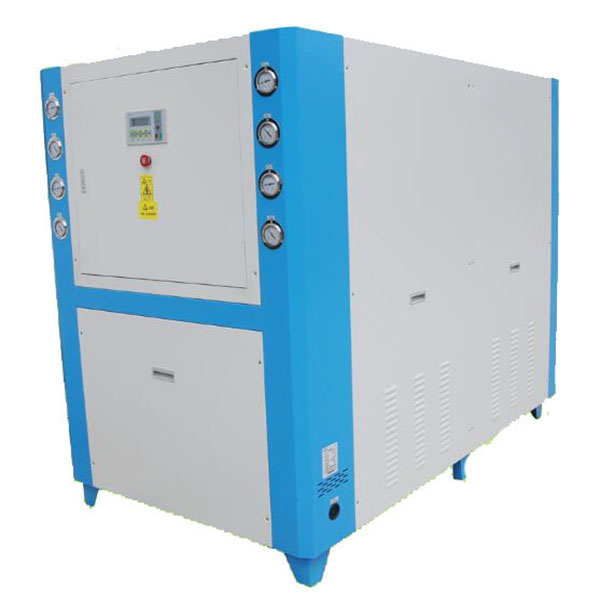

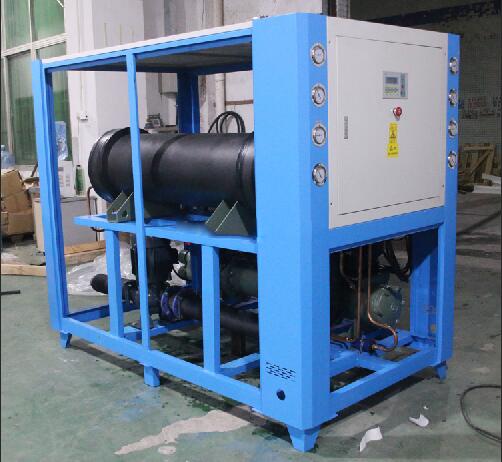

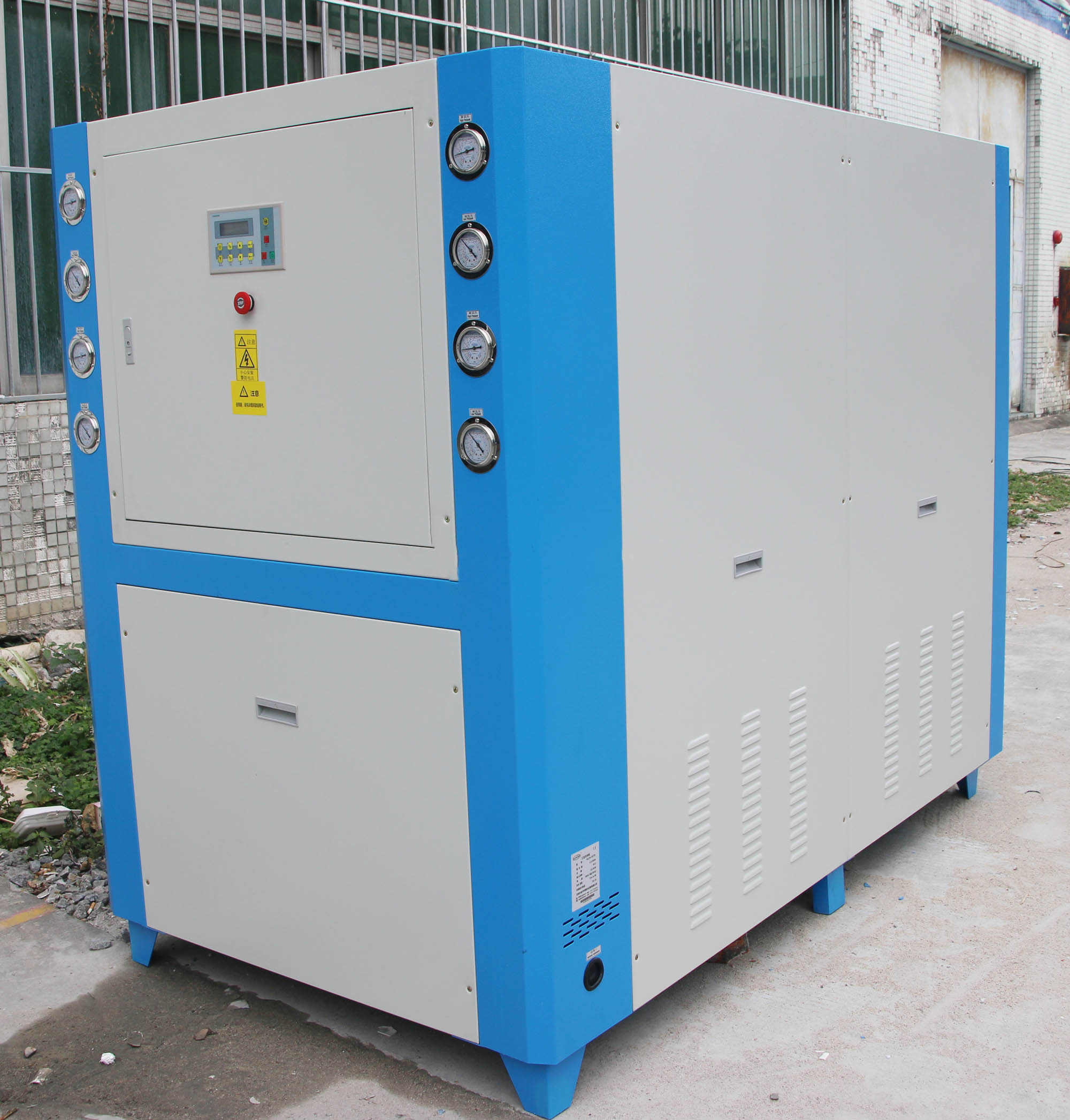

Photo of chiller;

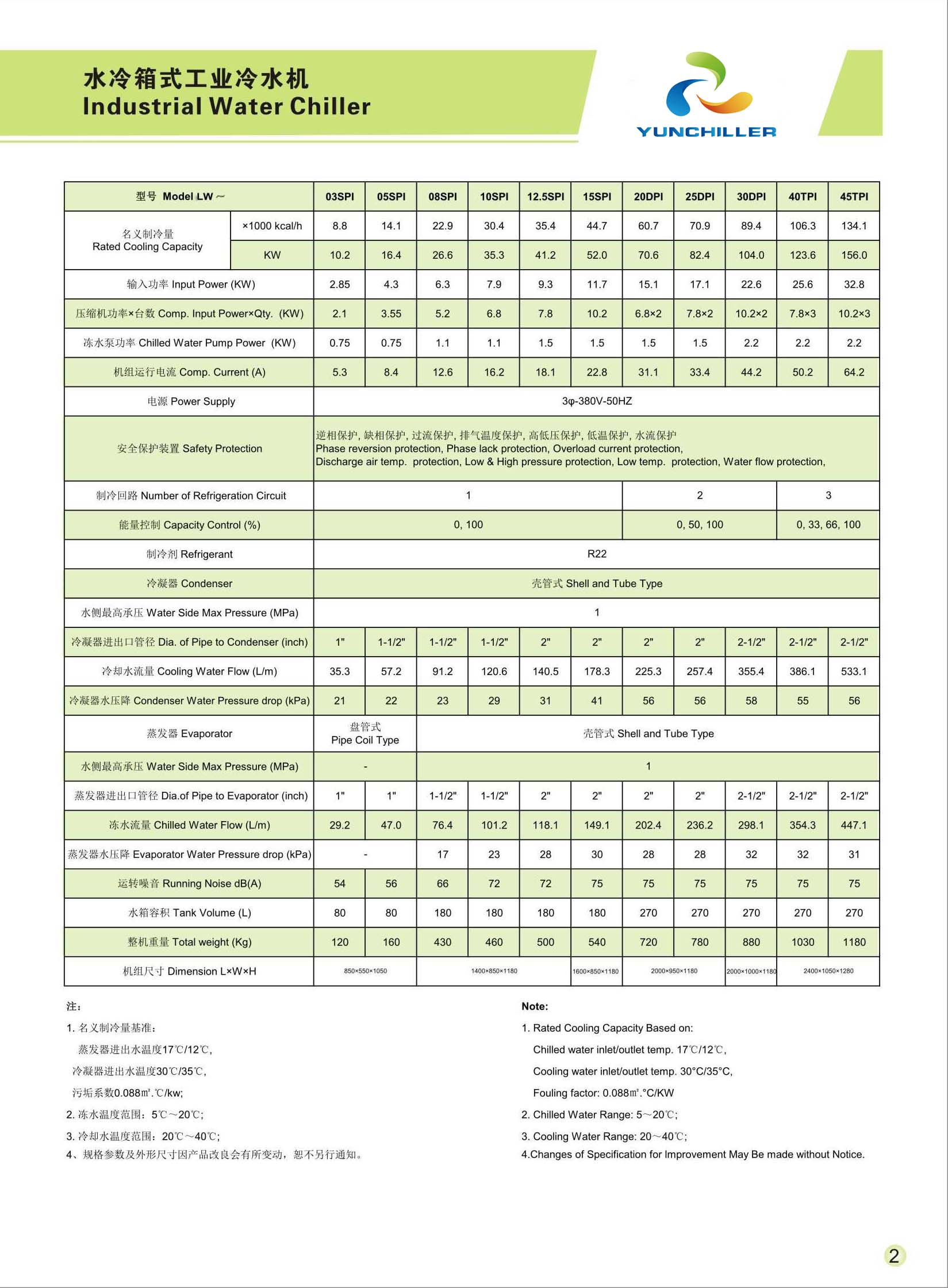

Spec Sheet:
