Hanbell compressor water cooled chiller

INTRODUCTION:

1. Rated Cooling Capacity Based on: Chilled water inlet/outlet temp. 12°C/7°C,

    Cooling water inlet/outlet temp. 30°C/35°C,

2. Chilled Water Range: 5~20°C;

3. Cooling Water Range: 20~40°C;

4. Refrigerant: R22 / R407C / R410A / R134A is optional.

5. Designed with imported inverter compressor(Refcome Brand) and multi-refrigeration circuits.

    High efficient and energy saving, help the user to lower the using cost.

6. Compressors: 1~2 compressors design to save energy and power.

7. Open-type stainless steel water tank, easy and fast to clean and maintain.

8. Well-structured safety protection and trouble indication system.

9. Brand of Compressor: Standard unit is Refcome, can guarantee reliable running, high efficiency, low noise and power saving and long use life. You could choose other brands just like HANBELL, Bitzer etc.

10. Electrostatic plastic sprayed outer casing, the outer panel is easy dismantlement to guarantee convenient usage and maintenance.

11. Microcomputer intelligent temperature controller, high precision digital display.

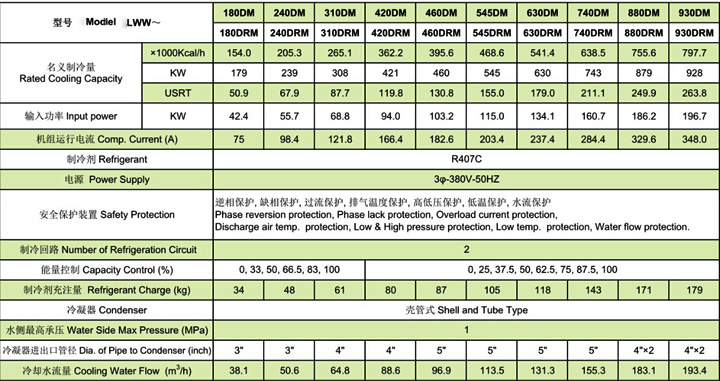

SPEC SHEET:

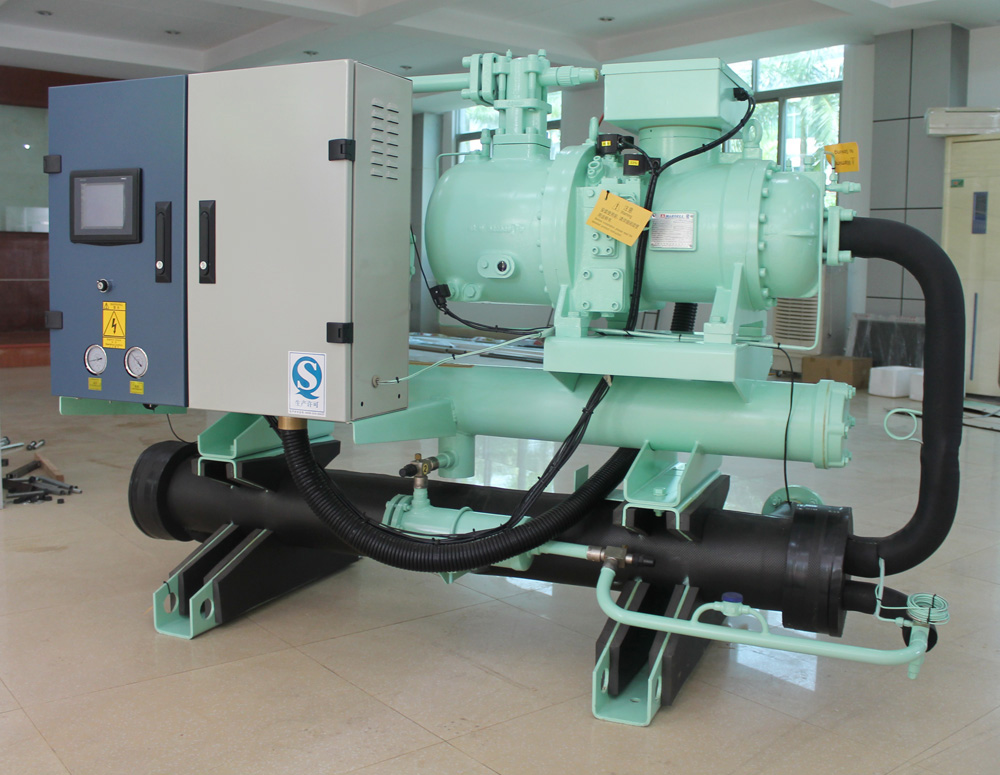

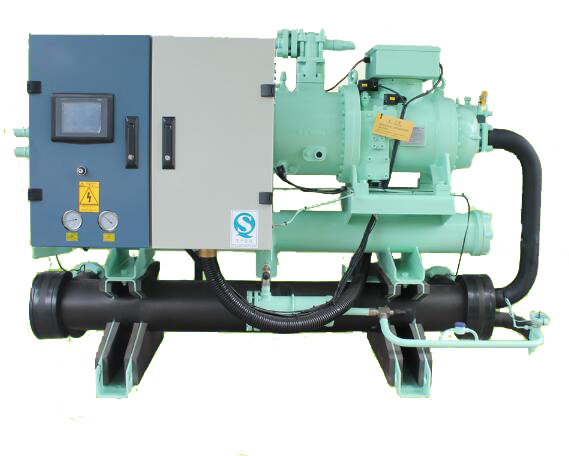

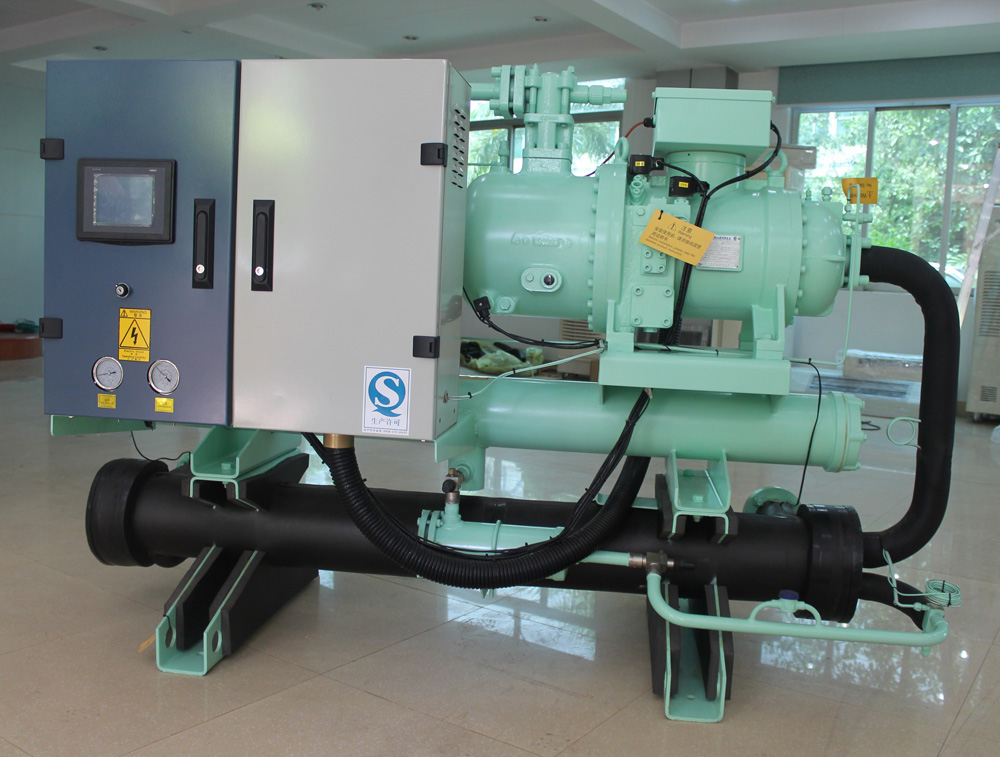

PRODUCT SHOW:
